187 ft Boom Lift

MAX WORKING HEIGHT

187 ft / 57m

MAX HORIZONTAL HEIGHT

133 ft / 40.8m

MAX CAGE CAPACITY

1300 lbs (590kg)

Blade Platforms

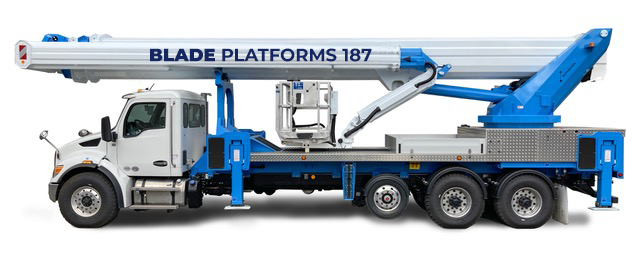

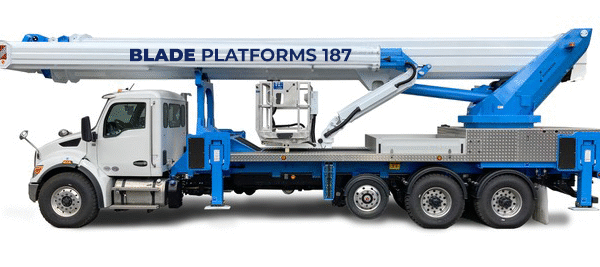

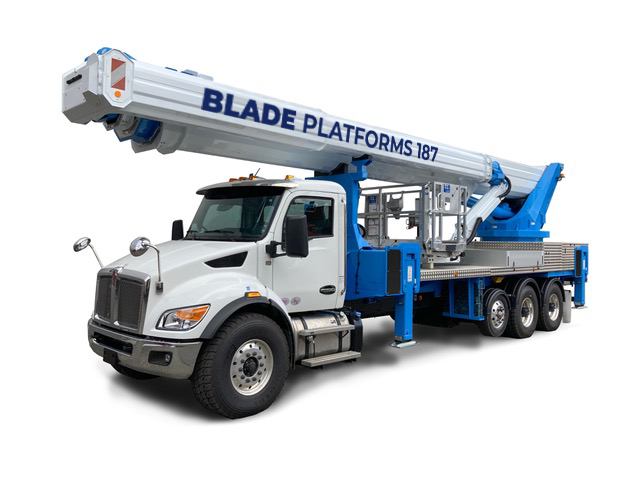

BLADE 187 BOOM LIFT - TRUCK MOUNTED AERIAL WORK PLATFORM

When your crew is working nearly 19 stories in the air, there’s no margin for error. The Blade 187 is engineered to go higher, move smarter, and keep your team safe while tackling the toughest utility and infrastructure projects.

From power lines and wind farms to complex industrial sites, the Blade 187 combines:
  • 187 ft (57 m) of vertical reach
  • 133 ft (40.8 m) horizontal outreach
  • 1,300 lb (590 kg) platform capacity
All in a compact, road-legal package designed for reliability, maneuverability, and speed.

Engineered to Perform

  • Extreme Reach – 187 ft working height with 39 ft below-grade reach.
  • Heavy Lift – 1,300 lb capacity supports crews, tools, and materials.
  • Smart Controls – Integrated COCKPIT intelligent control system for precision and ease of use.
  • Dynamic Reach System – Optimized boom performance with multi-beveled boom profile.
  • Rapid Setup – Auto outrigger setting and leveling reduces downtime.
  • Compact Mobility – Bridge Law Legal with Kenworth T480 chassis.
  • 360°+ Rotation – 440° turret rotation with 220° platform rotation.
  • Safety First – Built to EN 280 standards with stability engineered into every detail.

Built for the Toughest Jobs

  • Utility line maintenance & construction
  • Telecommunications infrastructure
  • Wind turbine service
  • Bridge & structural inspection
  • Industrial facility maintenance
  • High-rise building access

Specs Snapshot

  • Working Height: 187 ft (57 m)
  • Horizontal Outreach: 133 ft (40.8 m)
  • Platform Capacity: 1,300 lb (590 kg)
  • Below Grade Reach: 39 ft (11.5 m)
  • Chassis: Kenworth T480
  • Weight: 55,000 lbs (24,948 kg)

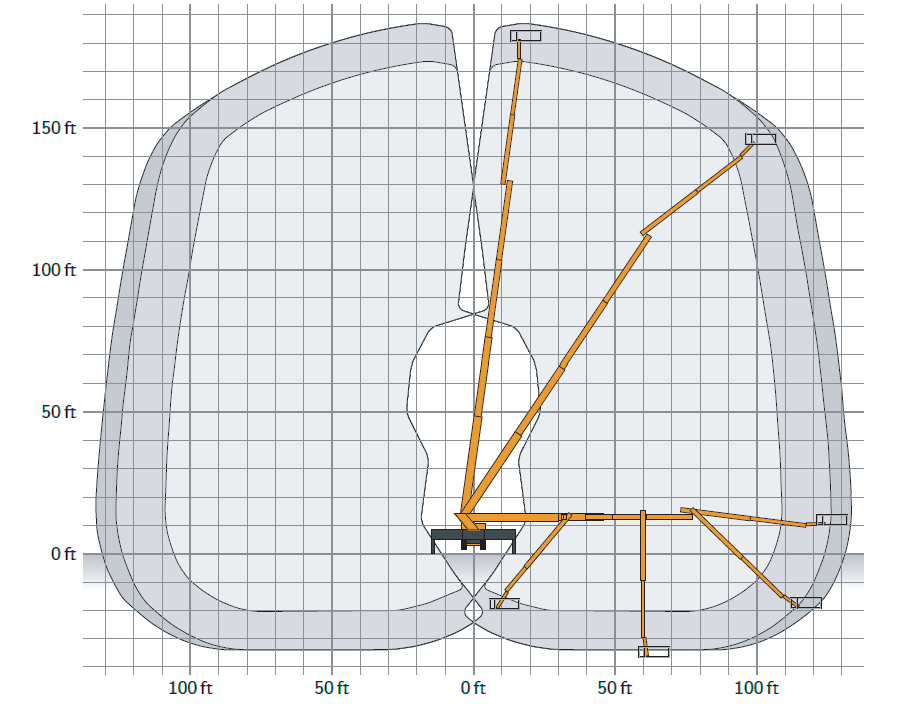

187ft Truck Mounted Platform Working Range

Go Higher. Work Smarter.

The Blade 187 is more than height — it’s engineered confidence. Contact Blade Platforms today to schedule a demo or request a quote.

Benefits of Blade Platforms Boom Lifts

High-Rise Access

Large Workman Basket

15 min Boom Lift Set Up

Renting a Blade 187 Boom Lift

Partnering with Blade Platforms and utilizing our operators provides you with a dependable workforce known for consistently delivering high productivity, safety, and efficiency.

If you have your own operators or are already experienced with MEWPs, consider bare renting a platform and training from one of our IPAF-certified instructors.

Click below to submit an inquiry for renting our Blade 187 boom lifts.

Purchasing a Blade 187 Boom Lift

As North America’s largest exclusive supplier of CPO aerial equipment, you can trust our MEWPs to be a great addition to your fleet. Simply contact a member of our team to arrange a demonstration and take the first step towards your new machinery.

Our platforms are the best machinery in the industry, and we are proud of our commitment to helping multiple fortune 500 companies. Elevate your business and increase performance with one of our boom lifts today.

TESTIMONIALS

Please Complete The Contact Form Below

Get In Touch With Blade Platforms

CONTACT US TODAY.

Contact Blade Platforms Today! Our Team of Aerial Work Platforms and Truck Mounted Crane experts are here to help with your project needs, no matter the industry. Simply fill in the contact form below.

Alternative Access Options

Industry Sectors

With Locations Across North America Blade Platforms is the leading provider of Aerial Work Platforms for a Variety of Industries.

AEROSPACE
TRANSMISSION & DISTRIBUTION
RENEWABLE ENERGY
TREE TRIMMING
OIL & GAS
WINDOW CLEANING
CELLL TOWERS & DATA CENTERS
ROOFING
REAL ESTATE DEVELOPMENT
INFRASTRUCTURE

FAQS

When operating a boom lift, it is vital to remember that it is possible for boom lifts to topple over on uneven terrain. The machines can also slip if operated on a slope, especially if the chassis angle limit or the boom’s gradeability are exceeded. It is recommended that boom lifts are only operated on firm, level ground.

Our machines are designed to remain stable when operated by properly trained individuals who understand the environmental conditions and how to use the outrigger pads for stabilization. These pads help to distribute the load evenly and reduce point loadings. In the case of an emergency, our computerized machines will allow personnel to be safely returned to the ground.

To ensure that boom lifts are operated safely and effectively, relevant training should be provided to all those involved in operating the machine. Other safety precautions to take when operating a boom lift include:

  • Regular inspection and maintenance
  • Using a safety harness
  • Evaluating the surrounding environment

Yes, there can be multiple people held in the cages of our boom lifts. Before doing so, take note of the weight capacity of the cage. For a 210 ft boom lift, the maximum weight that can be carried in the cage is 1,322 lbs, or 600 kg. As long as this capacity is not exceeded, the boom lift will function normally.
