BLADE 295 (90 m)
Truck-Mounted Aerial Work Platform
Blade Platforms Title #1 Title #2 Blade 295 (R) - 295 ft BOOM LIFT - TRUCK MOUNTED AERIAL WORK PLATFORM Title #1 Title #2 Our 295 (R) boom lift is the go to machine for those looking to reach tall heights, no matter the industry.
- 295 ft max height
- 137 ft outreach
- 1300 lbs payload
Technical Specifications
-
Working Range
- Max. working height
- 295ft (90m)
- Max. horizontal outreach
- 137ft (41.8m)
-
Workman Basket
- Cage dimensions
- 12.5ft x 3.2ft
- DegreesCage capacity
- 1300lbs (590kg)
-
Carrier Vehicle & Stowed Dimensions
- Gross vehicle weight
- 115,000lbs (52,163kg)
- Length in transport position
- 49.3ft (15m)
- Height in transport position
- 13.6ft (4.11m)
- Width in transport position
- 8.6ft (2.51m)

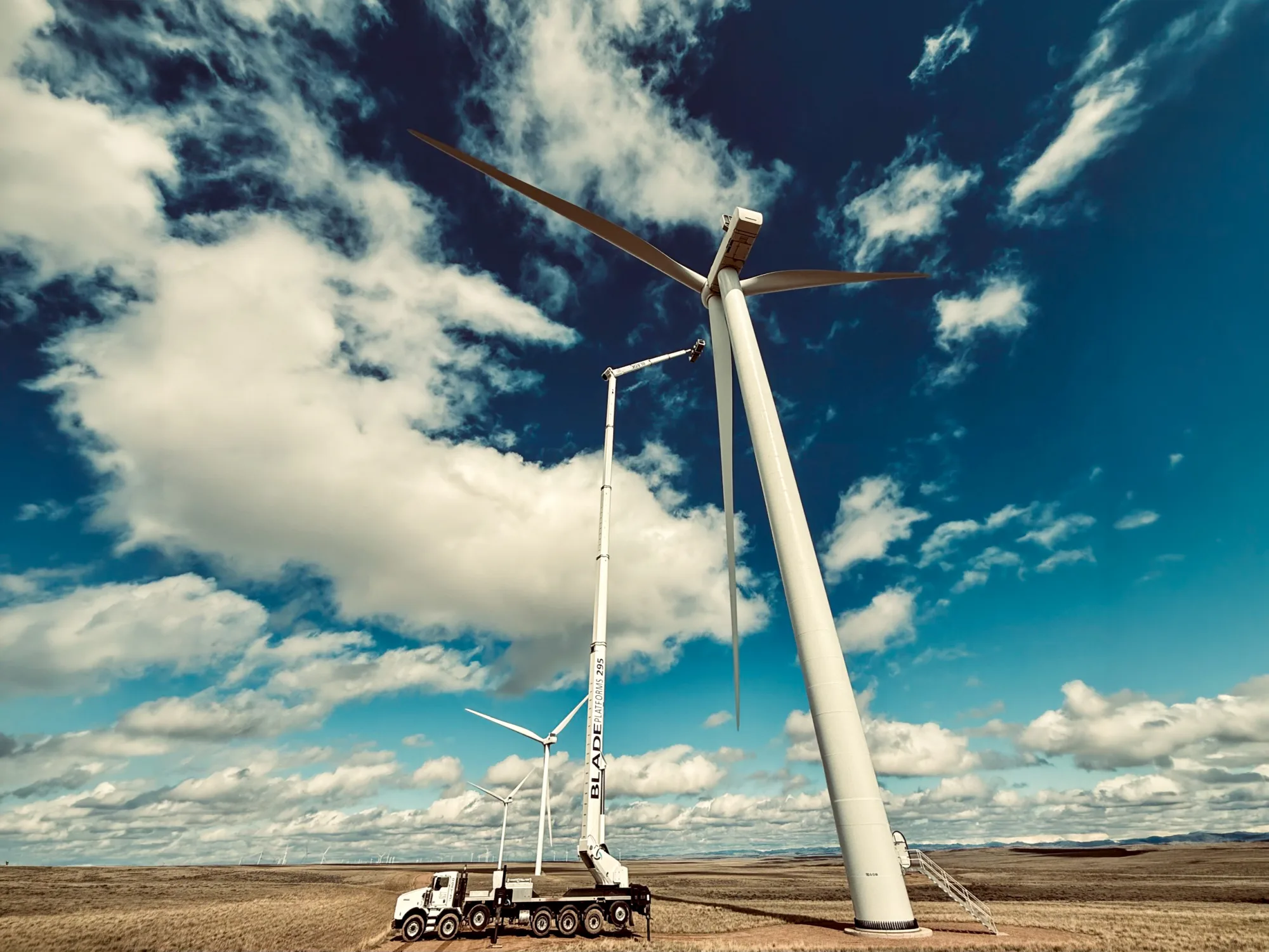

Our 295 (R) boom lift is the go to machine for those looking to reach tall heights, no matter the industry. Whether it be T&D, Aerospace, or inside the MSG Sphere in Las Vegas, our T 295R truck can handle it all.
With a maximum working height of 295 ft, this truck mount makes working at height as safe as possible. With an initial set-up time of under 15 minutes work can begin immediately.
Use of our professional operators guarantees maximum utilization of all unique features of our modern, top of the line lifts and assures unsurpassed work crew productivity, job safety and efficiency. We are also more than happy to rent our machines bare. Equipment demonstration will greatly assist in the machine selection process.
Either visit one of our North American branches, or book a time for us to visit you. Click the link below to submit an enquiry, and someone will be in touch.
If you are going to need one of our boom lifts on a long-term basis, purchasing a machine outright may be the most cost-effective option. Request a quote using the link below, and a member of our team will be in touch to provide further information regarding purchasing options.

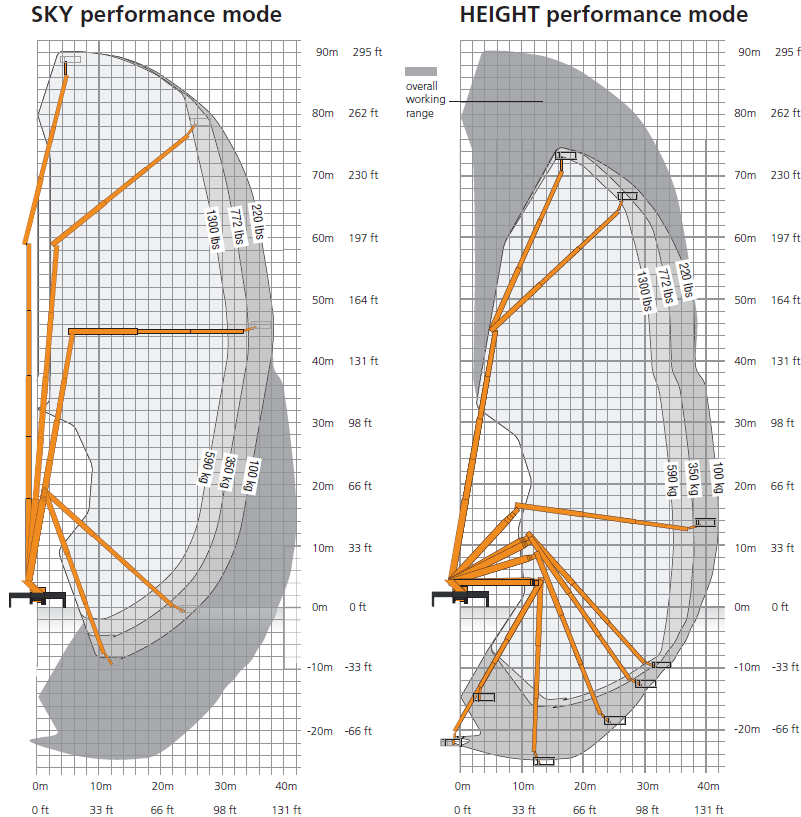

Reach Diagram
Full working envelope
Full-reach access
With up to 295ft of working height and 137ft of horizontal outreach, the platform covers its full working envelope to keep crews productive across the job site.
- Max. working height
- 295ft (90m)
- Max. horizontal outreach
- 137ft (41.8m)
Benefits of Blade Platforms Boom Lifts
Competent Operators
Quick Set Up
Industries that use the 295 (R) Boom Lift
Other models in the fleet
All trucksBLADE 157 (48 m)
Truck Mounted Aerial Work Platform
BLADE 166 (51 m)
Truck Mounted Aerial Work Platform
BLADE 187 (57 m)
Truck Mounted Aerial Work Platform
BLADE 210 (64 m)
Truck Mounted Aerial Work Platform
BLADE 235 (72 m)
Truck Mounted Aerial Work Platform
BLADE 243 (75 m)
Truck Mounted Aerial Work Platform
BLADE 295 (90 m)
Truck Mounted Aerial Work Platform
BLADE 336 (103 m)
Truck Mounted Aerial Work Platform
What our customers say
See what customers are saying about Blade Platforms on Google.
Frequently asked questions
HOW DOES A 295 ft BOOM LIFT PERFORM IN VARIOUS WEATHER CONDITIONS?
As our boom lifts are computerized, the machines are able to calculate loads based on wind conditions. This allows the machine to be operated as normal even during strong winds, up to a maximum wind speed of 28 MPH (12.5m/s). Rain will have no effect on the boom lift, however, the boom lift should not be operated during a thunderstorm.
CAN A 295 ft BOOM LIFT BE USED INDOORS, OR IS IT STRICTLY FOR INDOOR USE?
It is usually only battery-powered boom lifts that are used indoors to help reduce emissions and noise, whereas outdoor models can run on diesel and other fuels for increased power and endurance. Operating a diesel-powered boom lift indoors would require substantial ventilation.
