- Truck Mounted
- Available for Rent

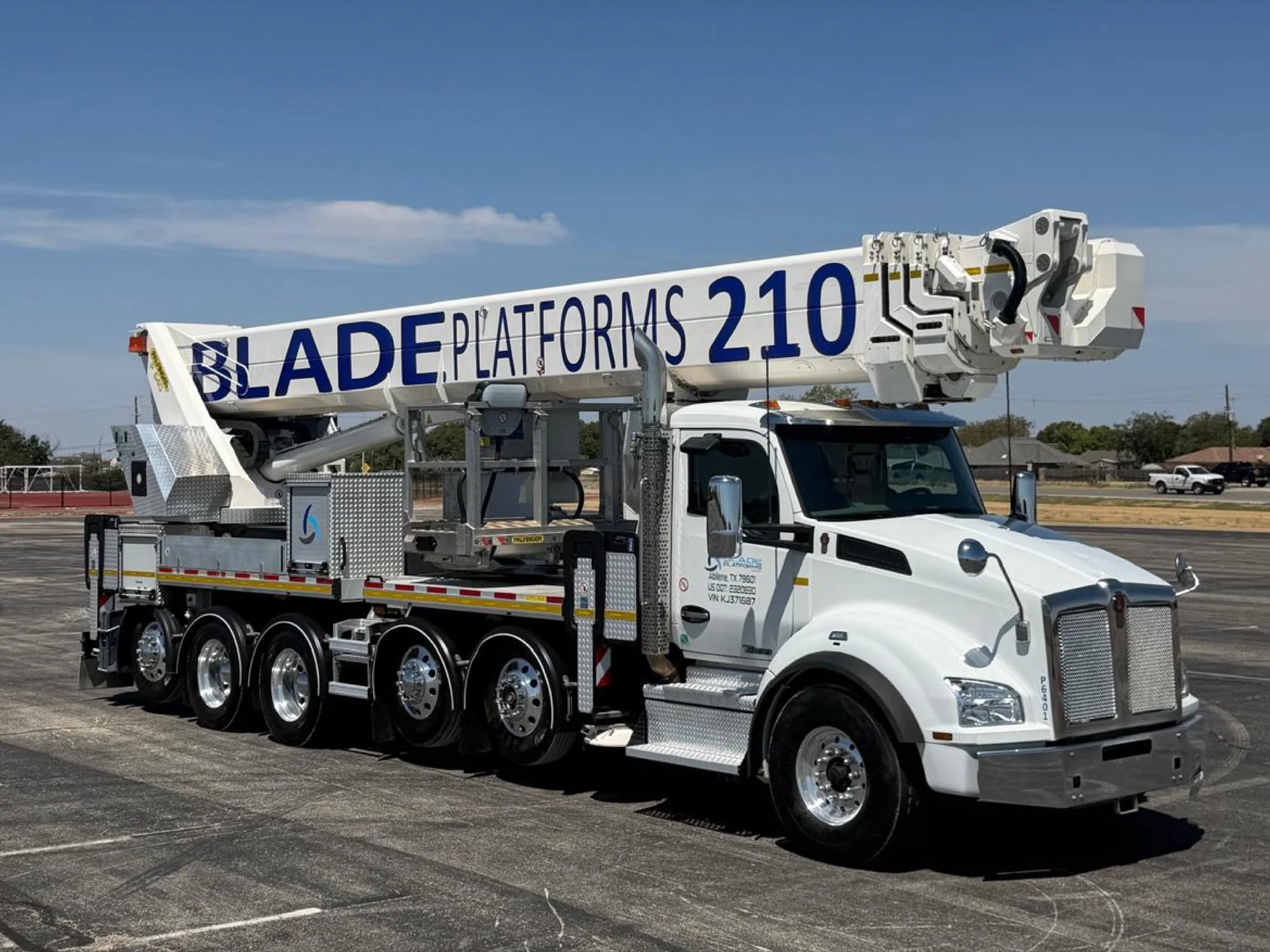

210 ft Boom Lift
Truck-Mounted Aerial Work Platform
Blade Platforms Title #1 Title #2 210 ft BOOM LIFT - TRUCK MOUNTED AERIAL WORK PLATFORM Title #1 Title #2 This truck mounted aerial access platform can handle the toughest job conditions, from crowded cityscapes to wind turbine sites.
- 210 ft max height
- 133 ft outreach
- 1322 lbs payload
Technical Specifications
-
Working Range
- Max. working height
- 210ft (64m)
- Max. horizontal outreach
- 133ft (40.5m)
-

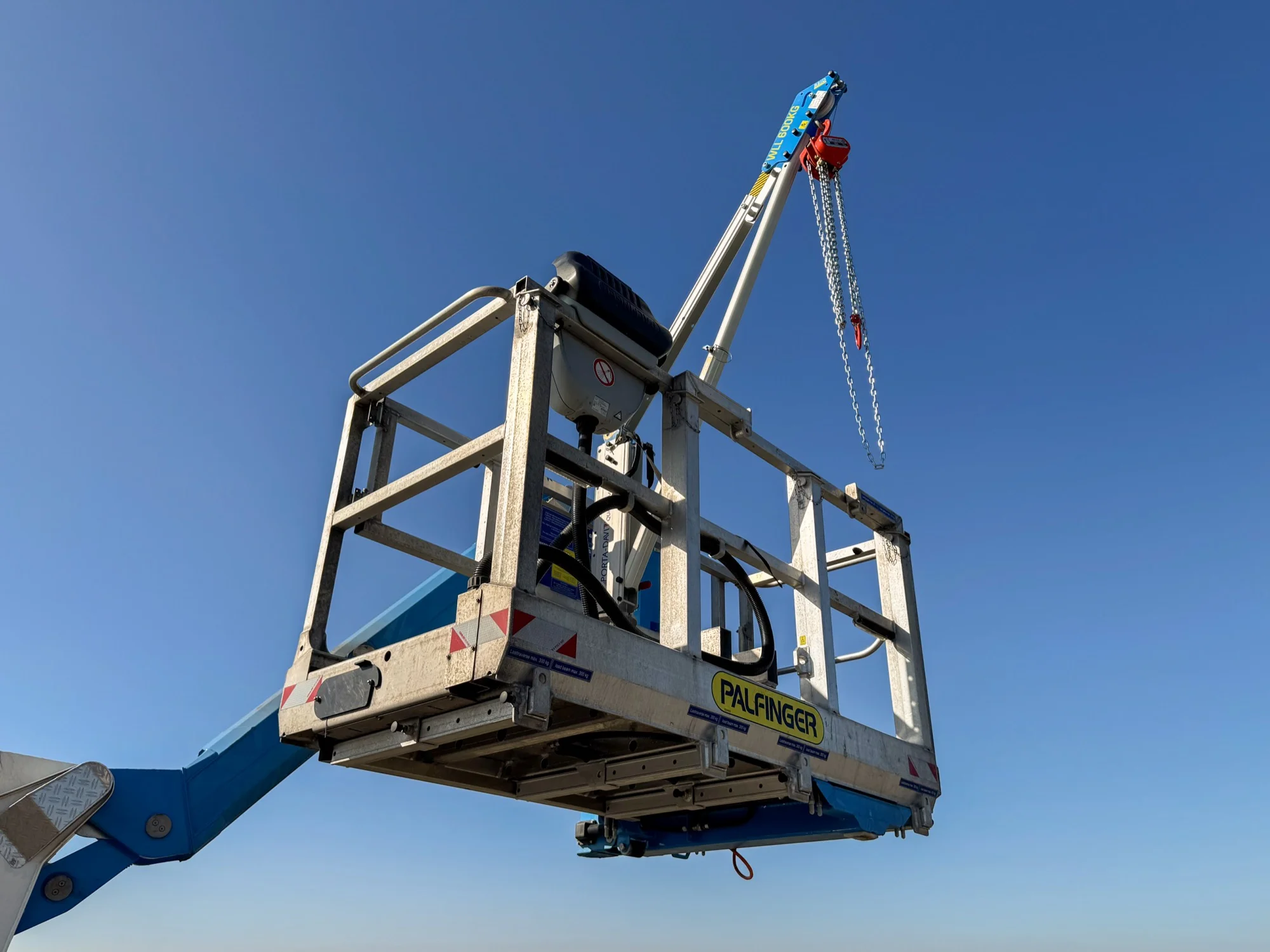

Workman Basket
- Cage dimensions
- 12.5ft x 3.4ft
- Cage capacity
- 1,322.77lbs (600kg)
-
Carrier Vehicle & Stowed Dimensions
- Gross vehicle weight
- 69,500lbs (31,525kg)
- Length in transport position
- 39.2ft (11.93m)
- Height in transport position
- 13.1ft (3.97m)
- Width in transport position
- 8.3ft (2.51m)
This truck mounted aerial access platform can handle the toughest job conditions, from crowded cityscapes to wind turbine sites. With its 210 foot working height, this truck-mounted lift will reach impressive distances vertically and sideways.
Versatile Boom Lifts
With a maximum working height of 210 ft & outreach capabilities up to 133 ft, this machine is the ideal solution for working at height across many industry sectors in the most challenging of environments.
Whether an elevator on a steel structure on a wind turbine needs repairs at over 200 feet or a rocket needs welding repairs, our aerial work platforms and IPAF certified team can get the job done, safely and efficiently, using our machines such as the T210. Due to the T210’s weight, length, and lift axles it can also tackle difficult terrain that is often found at T&D sites. This added maneuverability means that there is no need for a road to be built for the boom lift to access the jobsite.
Proven Track-Record
For the past 30 years in Europe, we've demonstrated that MEWPs are the safest and most efficient aerial access equipment. Since 2009, this proven concept has finally become available in the US. We have transformed client performances by operating and leasing platforms that extend 210ft and boast a cage capacity of 1322 lbs. It is an excellent choice when maneuverability and versatility are top priorities with tried-and-tested applications.
Renting a 210 ft Boom Lift
Partnering with Blade Platforms and utilizing our operators provides you with a dependable workforce known for consistently delivering high productivity, safety, and efficiency.
If you have your own operators or are already experienced with MEWPs, consider bare renting a platform and training from one of our IPAF-certified instructors.
Purchasing a 210 ft Boom Lift
As North America’s largest exclusive supplier of CPO aerial equipment, you can trust our MEWPs to be a great addition to your fleet. Simply contact a member of our team to arrange a demonstration and take the first step towards your new machinery.
Our platforms are the best machinery in the industry, and we are proud of our commitment to helping multiple fortune 500 companies. Elevate your business and increase performance with one of our boom lifts today.

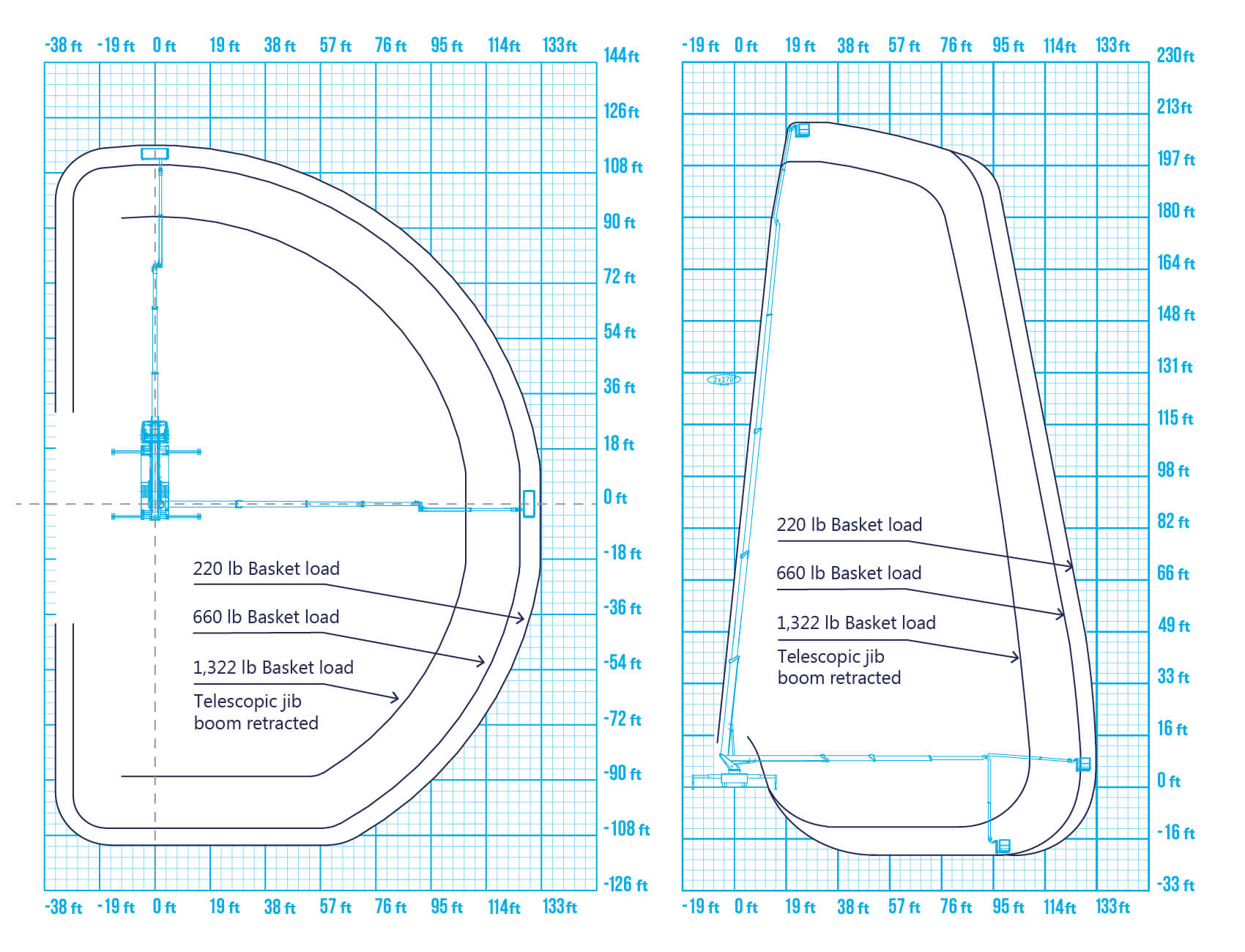

Reach Diagram
Full working envelope
Full-reach access
With up to 210ft of working height and 133ft of horizontal outreach, the platform covers its full working envelope to keep crews productive across the job site.
- Max. working height
- 210ft (64m)
- Max. horizontal outreach
- 133ft (40.5m)
Benefits of Blade Platforms Boom Lifts
Large Workman Basket
15 min Boom Lift Set Up
Industries that use the 210 ft Boom Lift
Other models in the fleet
All trucksWhat our customers say
See what customers are saying about Blade Platforms on Google.
Frequently asked questions
CAN A 210 ft BOOM LIFT BE USED ON UNEVEN TERRAIN?
When operating a boom lift, it is vital to remember that it is possible for boom lifts to topple over on uneven terrain. The machines can also slip if operated on a slope, especially if the chassis angle limit or the boom’s gradeability are exceeded. It is recommended that boom lifts are only operated on firm, level ground.
Our machines are designed to remain stable when operated by properly trained individuals who understand the environmental conditions and how to use the outrigger pads for stabilization. These pads help to distribute the load evenly and reduce point loadings. In the case of an emergency, our computerized machines will allow personnel to be safely returned to the ground.
WHAT TYPES OF JOBS ARE MOST COMMONLY DONE WITH A 210 ft BOOM LIFT?
To ensure that boom lifts are operated safely and effectively, relevant training should be provided to all those involved in operating the machine. Other safety precautions to take when operating a boom lift include:
- Regular inspection and maintenance
- Using a safety harness
- Evaluating the surrounding environment
CAN MULTIPLE PEOPLE STAND IN A 210 ft BOOM LIFT'S CAGE?
Yes, there can be multiple people held in the cages of our boom lifts. Before doing so, take note of the weight capacity of the cage. For a 210 ft boom lift, the maximum weight that can be carried in the cage is 1,322 lbs, or 600 kg. As long as this capacity is not exceeded, the boom lift will function normally.
