- Truck Mounted
- Available for Rent
BLADE 187R (57 m)
Truck-Mounted Aerial Work Platform · Ruthmann
The BLADE 187R (57 m) is the Ruthmann-built platform in our 187 ft (57 m) class, available for rent across North America. Contact us for full specifications, current availability and rates.
- 187 ft max height
- 133 ft outreach
- 1,300 lbs payload
Technical Specifications
-
Working Range
- Max. working height
- 187ft (57m)
- Max. cage floor height
- 180ft 5in (55m)
- Max. horizontal outreach
- 133ft (40.8m)
- Below grade reach
- 39ft (11.9m)
-
Workman Basket
- Standard cage width
- 7ft 11in (2.41m)
- Extended cage width
- 12ft 6in (3.81m)
- Work cage depth
- 3ft 2in (0.97m)
- Max. safe working load
- 1,300lbs (590kg)
- Cage rotation
- 440 degrees
- Turntable rotation
- 500 degrees
-
Carrier Vehicle & Stowed Dimensions
- Gross vehicle weight
- 56,500lbs (25,628kg)
- Length in transport position
- 39ft 2in (11.94m)
- Height in transport position
- 13ft 1in (3.99m)
- Width in transport position
- 8ft 4in (2.54m)
- Max. stabilizer spread
- 28ft 7in (8.71m)
The BLADE 187R (57 m) is the Ruthmann-built platform in our 187 ft class, engineered for safe, repeatable access in demanding environments — from dense urban work zones to remote infrastructure sites. It offers a maximum working height of 187ft (57m) and a horizontal outreach of 133ft (40.8m).
Built for reach and stability
The work cage carries up to 1,300lbs (590kg), with 56,500lbs (25,628kg) of gross vehicle weight and a transport length of 39ft 2in (11.94m). Automatic outrigger setting and levelling establish a stable working base quickly, and the platform is rated to ANSI A92.2 and CSA C225.
Renting a 187 ft Truck Mounted Aerial Work Platform
Partnering with Blade Platforms and utilizing our operators provides you with a dependable workforce known for consistently delivering high productivity, safety, and efficiency.
If you have your own operators or are already experienced with MEWPs, consider bare renting a platform and training from one of our IPAF-certified instructors.

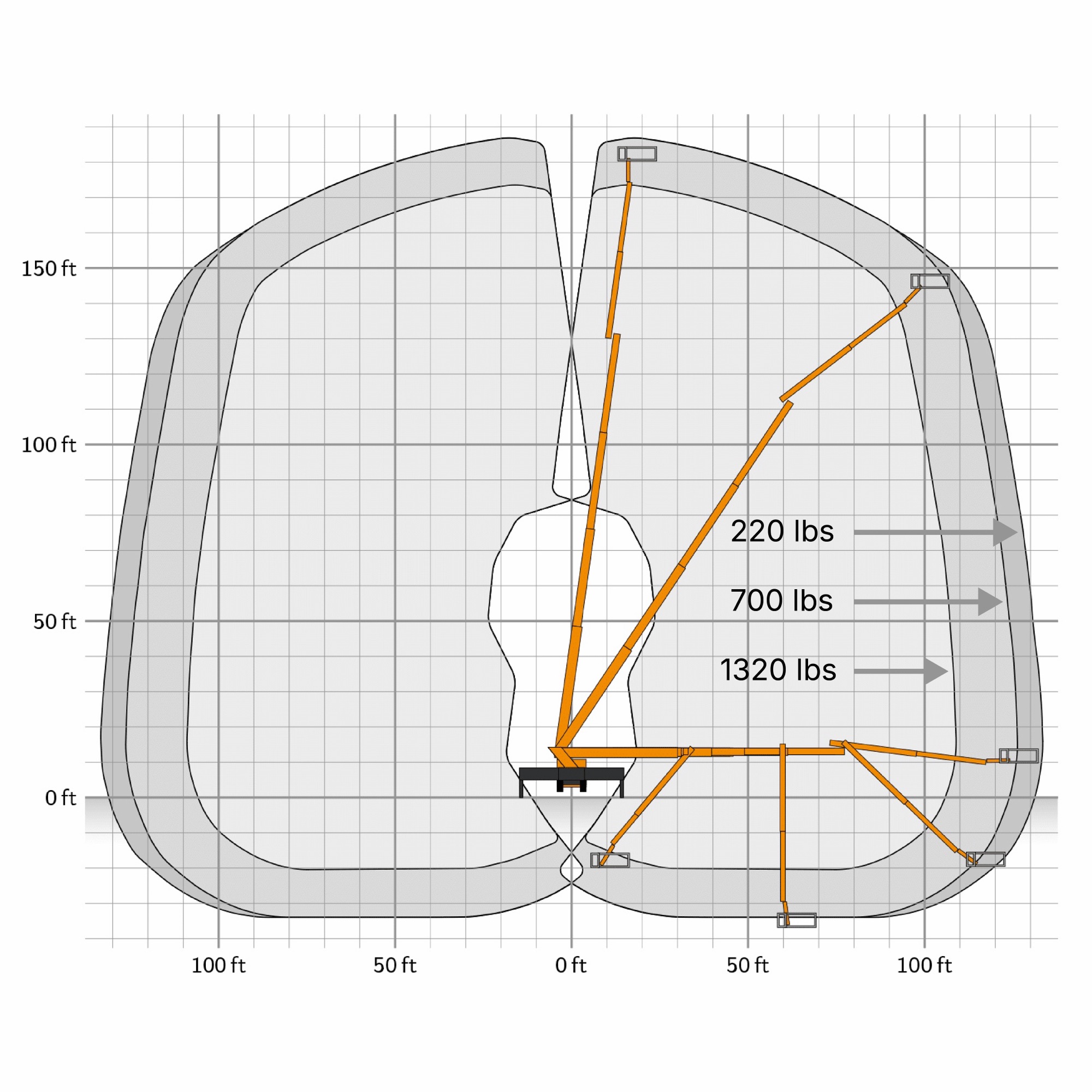

Reach Diagram
Full working envelope
Full-reach access
With up to 187ft (57m) of working height and 133ft (40.8m) of horizontal outreach, the platform covers its full working envelope to keep crews productive across the job site.
- Max. working height
- 187ft (57m)
- Max. horizontal outreach
- 133ft (40.8m)
Benefits of Blade Platforms Truck Mounted Aerial Work Platforms
Large Workman Basket
15 min Truck Mounted Aerial Work Platform Set Up
Industries that use the 187 ft Truck Mounted Aerial Work Platform
Other models in the fleet
BLADE 157P (48 m)
Truck Mounted Aerial Work Platform
BLADE 166R (51 m)
Truck Mounted Aerial Work Platform
BLADE 187P (57 m)
Truck Mounted Aerial Work Platform
BLADE 210P (64 m)
Truck Mounted Aerial Work Platform
BLADE 243P (75 m)
Truck Mounted Aerial Work Platform
BLADE 243R (75 m)
Truck Mounted Aerial Work Platform
BLADE 295P (90 m)
Truck Mounted Aerial Work Platform
BLADE 295R (90 m)
Truck Mounted Aerial Work Platform
BLADE 336P (103 m)
Truck Mounted Aerial Work Platform
What our customers say
See what customers are saying about Blade Platforms on Google.
Frequently asked questions
CAN A 187 ft Truck Mounted Aerial Work Platform BE USED ON UNEVEN TERRAIN?
When operating a Truck Mounted Aerial Work Platform, it is vital to remember that it is possible for Truck Mounted Aerial Work Platforms to topple over on uneven terrain. The machines can also slip if operated on a slope, especially if the chassis angle limit or the boom’s gradeability are exceeded. It is recommended that Truck Mounted Aerial Work Platforms are only operated on firm, level ground.
Our machines are designed to remain stable when operated by properly trained individuals who understand the environmental conditions and how to use the outrigger pads for stabilization. These pads help to distribute the load evenly and reduce point loadings. In the case of an emergency, our computerized machines will allow personnel to be safely returned to the ground.
WHAT TYPES OF JOBS ARE MOST COMMONLY DONE WITH A 187 ft Truck Mounted Aerial Work Platform?
To ensure that Truck Mounted Aerial Work Platforms are operated safely and effectively, relevant training should be provided to all those involved in operating the machine. Other safety precautions to take when operating a Truck Mounted Aerial Work Platform include:
- Regular inspection and maintenance
- Using a safety harness
- Evaluating the surrounding environment
CAN MULTIPLE PEOPLE STAND IN A 187 ft Truck Mounted Aerial Work Platform'S CAGE?
Yes, there can be multiple people held in the cages of our Truck Mounted Aerial Work Platforms. Before doing so, take note of the weight capacity of the cage. For a 187 ft Truck Mounted Aerial Work Platform, the maximum weight that can be carried in the cage is 1,300 lbs, or 590 kg. As long as this capacity is not exceeded, the Truck Mounted Aerial Work Platform will function normally.
